You Did What?!?

Understanding Node Optimizations

preliminary note

All code runs on latest master.

Literally, I just patched an re-ran these yesterday.

why is core code so confusing?

It's not intentional.

The result of ridiculous amounts of benchmarks and analysis.

starting with the basics

Hoisting our functions

writing functions inline

var SB = require('buffer').SlowBuffer;
var max = 3e4;
(function runTick() {
  process.nextTick(function genPrimes() {
    if (--max < 0) return;
    var primes = [];
    var len = (max >>> 3) + 1;
    var sieve = new SB(len);
    sieve.fill(0xff, 0, len);
    var cntr, x, j;
    for (cntr = 0, x = 2; x <= max; ++x) {
      if (sieve[x >>> 3] & (1 << (x & 7))) {
        primes[cntr++] = x
        for(j = 2 * x; j <= max; j += x)
          sieve[j >>> 3] &= ~(1 << (j & 7))
      }
    }
    runTick();
  });
}());

Runtime:

$ /usr/bin/time node primegen0.js
19.53user 0.00system 0:19.58elapsed 99%CPU (51040maxresident)k
0inputs+0outputs (0major+13104minor)pagefaults 0swaps


hoisting our functions

var SB = require('buffer').SlowBuffer;

function genPrimes(max) {
  if (--max < 0) return;
  var primes = [];
  var len = (max >>> 3) + 1;
  var sieve = new SB(len);
  sieve.fill(0xff, 0, len);
  var cntr, x, j;
  for (cntr = 0, x = 2; x <= max; ++x) {
    if (sieve[x >>> 3] & (1 << (x & 7))) {
      primes[cntr++] = x
      for(j = 2 * x; j <= max; j += x)
        sieve[j >>> 3] &= ~(1 << (j & 7))
    }
  }
  runTick();
}

var max = 3e4;
function runTick() {
  process.nextTick(function() {
    if (--max < 0) return;
    genPrimes(max);
    runTick();
  });
}
runTick();

Runtime:

$ /usr/bin/time node primegen1.js
4.59user 0.04system 0:04.64elapsed 99%CPU (50540maxresident)k
0inputs+0outputs (0major+12977minor)pagefaults 0swaps


so... hoisting functions matter

Here it was 3.3x's faster.

carefully choose your encoding

e.g. Why I hate UTF8

Buffer#toString() on one byte characters

binary  16B    110.72 ns/op
ascii   16B    110.06 ns/op   N/A
utf8    16B    115.04 ns/op   N/A

binary  1KB    157.29 ns/op
ascii   1KB    246.49 ns/op   -36.2%
utf8    1KB    254.67 ns/op   -38.2%

binary  32KB     2.37 μs/op
ascii   32KB     4.57 μs/op   -92.8%
utf8    32KB     5.13 μs/op  -116.5%

binary  128KB    8.79 μs/op
ascii   128KB   17.00 μs/op   -93.4%
utf8    128KB   19.65 μs/op  -123.5%

binary  512KB   36.74 μs/op
ascii   512KB   73.67 μs/op  -100.5%
utf8    512KB  104.23 μs/op  -183.9%


Buffer#toString() on two byte characters

binary  16B    111.21 ns/op
utf8    16B    156.31 ns/op    -40.5%

binary  1KB    159.45 ns/op
utf8    1KB      2.65 μs/op  -1566.7%

binary  32KB     2.41 μs/op
utf8    32KB   130.33 μs/op  -5306.7%

binary  128KB    9.16 μs/op
utf8    128KB  539.72 μs/op  -5719.8%

binary  512KB   37.89 μs/op
utf8    512KB    2.61 ms/op  -6788.4%


why parse utf8 in binary?

Max, this is for you : )

maybe to write out json keys

*cough* leveldb *cough*

Important Assumption: All keys fit in one byte space.

scenario setup

var size = 4;

// Create a ridiculous JSON object with utf8 values.
var json = {};
for (var i = 0; i < size; i++)
  json[i] = 'foo:\u0222 bar:\u0223';

// First setup the data to look  like it would after being read in
// from a file.
var json_string = JSON.stringify(json);

// We're going to assume the file was written in UTF8.
var json_buffer = new Buffer(json_string, 'utf8');

now the magic

// Start working with the data.
var binary_json = json_buffer.toString('binary');

// Unfortunately JSON.parse always assumes UTF8.
// But I'm working on a hack for that.
var json_binary = JSON.parse(binary_json);

// Here we'll see the values look all fubar, but before they're
// written out to a stream we can convert them back to a Buffer using
// binary encoding and they'll have the same representation.
console.log(json_binary);
        Output:                             Actual:

        { '0': 'foo:È¢ bar:È£',             { '0': 'foo:Ȣ bar:ȣ',
          '1': 'foo:È¢ bar:È£',               '1': 'foo:Ȣ bar:ȣ',
          '2': 'foo:È¢ bar:È£',               '2': 'foo:Ȣ bar:ȣ',
          '3': 'foo:È¢ bar:È£' }              '3': 'foo:Ȣ bar:ȣ' }


Yeah. Strange I know, but it'll all work out.

how can it be used?

var db = require('levelup')('./mydb');

// Convert each value to Buffer before passing down the pipe
db.put(0, new Buffer(json_binary[0], 'binary'), function(err) {
  db.get(0, function(err, val) {
    console.log(val);
  });
});

Output - foo:Ȣ bar:ȣ

what does this have to do with core?

We make the assumption that all HTTP headers are already in ASCII space, so no need for the additional parsing.

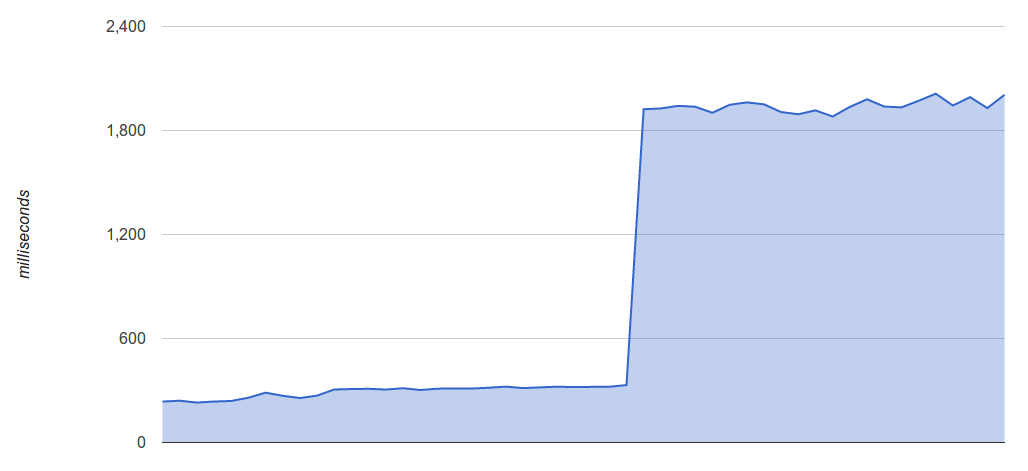

when strings get large

What happens to performance as string size grows?

what to do about it?

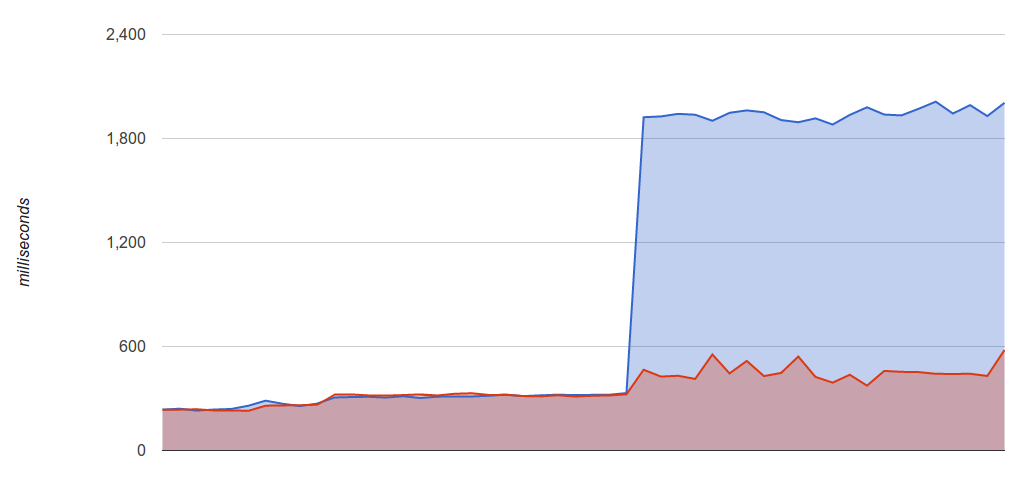

Externalized Strings to the rescue!

(inflection point is around 1MB)

strange side effects

Mutable Strings!!!

void AfterFill(const FunctionCallbackInfo<Value>& args) {
  HandleScope scope(args.GetIsolate());

  Local<String> long_string = args[0].As<String>();

  assert(long_string->IsString());
  assert(args[1]->IsString());

  String::AsciiValue fill_char(args[1]);

  char* data = NULL;
  size_t length = 0;
  assert(node::StringBytes::GetExternalParts(
        long_string, const_cast<const char**>(&data), &length));

  memset(data, (*fill_char)[0], length);
}
var long_string = new Buffer(1024 * 1024).fill('a').toString('binary');

console.log(long_string.substr(0, 10));

afterFill(long_string, 'b');

console.log(long_string.substr(0, 10));
                             Output:

                             aaaaaaaaaa
                             bbbbbbbbbb


best practice tip

DON'T MUTATE YOUR STRINGS!!!

setting object properties

What could be so hard?

More than you think

basic case

static const uint8_t* length_sym;
static const uint8_t* type_sym;
static const uint8_t* used_sym;


void SetInCCSlow(const FunctionCallbackInfo<Value>& args) {
  Isolate* isolate = args.GetIsolate();
  HandleScope scope(isolate);

  // Create a new Object to contain our properties.
  Local<Object> obj = Object::New();

  // Passing in three property types.
  Local<Number> arg0 = args[0]->ToNumber();
  Local<String> arg1 = args[1]->ToString();
  Local<Boolean> arg2 = args[2]->ToBoolean();

  // Set the Object properties.
  obj->Set(String::NewFromOneByte(isolate, length_sym), arg0);
  obj->Set(String::NewFromOneByte(isolate, type_sym), arg1);
  obj->Set(String::NewFromOneByte(isolate, used_sym), arg2);

  args.GetReturnValue().Set(obj);
}


// Done on initialize.
length_sym = reinterpret_cast<const uint8_t*>("length");
type_sym = reinterpret_cast<const uint8_t*>("type");
used_sym = reinterpret_cast<const uint8_t*>("used");

using persistent handles

Persistent<String> p_length_sym;
Persistent<String> p_type_sym;
Persistent<String> p_used_sym;


// Only safe if the Persistent isn't Weak.
template<class T>
inline Local<T> ToLocal(Persistent<T>* p_) {
  return *reinterpret_cast<Local<T>*>(p_);
}


void SetInCCSym(const FunctionCallbackInfo<Value>& args) {
  Isolate* isolate = args.GetIsolate();
  HandleScope scope(isolate);

  Local<Object> obj = Object::New();

  Local<Number> arg0 = args[0]->ToNumber();
  Local<String> arg1 = args[1]->ToString();
  Local<Boolean> arg2 = args[2]->ToBoolean();

  // This time we'll use the Persistent Strings.
  obj->Set(ToLocal<String>(&p_length_sym), arg0);
  obj->Set(ToLocal<String>(&p_type_sym), arg1);
  obj->Set(ToLocal<String>(&p_used_sym), arg2);

  args.GetReturnValue().Set(obj);
}


// Done on initialize.
p_length_sym.Reset(isolate, String::NewFromOneByte(isolate, length_sym));
p_type_sym.Reset(isolate, String::NewFromOneByte(isolate, type_sym));
p_used_sym.Reset(isolate, String::NewFromOneByte(isolate, used_sym));

write object properties in js

void SetInJS(const FunctionCallbackInfo<Value>& args) {
  Isolate* isolate = args.GetIsolate();
  HandleScope scope(isolate);

  Local<Object> obj = Object::New();
  Local<Number> arg0 = args[0]->ToNumber();
  Local<String> arg1 = args[1]->ToString();
  Local<Boolean> arg2 = args[2]->ToBoolean();

  Local<Value> argv[3] = { arg0, arg1, arg2 };

  // We've previously Persisted the below JS function.
  ToLocal<Function>(&p_setprop_fn)->Call(obj, 3, argv);

  args.GetReturnValue().Set(obj);
}
// object is created in cc and set as instance of function when called
function setProperties(length, type, used) {
  this.length = length;
  this.type = type;
  this.used = used;
}

doing it all in js

void SetInJSObj(const FunctionCallbackInfo<Value>& args) {
  Isolate* isolate = args.GetIsolate();
  HandleScope scope(isolate);

  Local<Number> arg0 = args[0]->ToNumber();
  Local<String> arg1 = args[1]->ToString();
  Local<Boolean> arg2 = args[2]->ToBoolean();

  Local<Value> argv[3] = { arg0, arg1, arg2 };

  // Pass in previously persisted empty Object.
  Local<Function> fn = ToLocal<Function>(&p_setobj_fn);
  obj = fn->Call(obj, 3, argv);

  args.GetReturnValue().Set(obj);
}
// returns new object setting object properties passed from cc
function setPropObj(length, type, used) {
  return {
    length: length,
    type: type,
    used: used
  };
}

now, the numbers

             setInCCSlow -   1.56 μs/op
             setInCCSym  - 809.65 ns/op
             setInJS     - 370.62 ns/op
             setInJSObj  - 148.61 ns/op


Even in the optimized C++ case, calling to JS is 4.5x's faster.

access named vs indexed properties

Now we enter the rabbit hole.

named object properties

// Setup our object with named properties.
var obj = { length: 10, type: 'string', used: true };
accessNamed(obj, iter);
void AccessNamed(const FunctionCallbackInfo<Value>& args) {
  Isolate* isolate = args.GetIsolate();
  HandleScope scope(isolate);

  Local<Object> obj = args[0].As<Object>();
  size_t iter = args[1]->Uint32Value();

  assert(obj->IsObject());

  for (size_t i = 0; i < iter; i++) {
    size_t length = obj->Get(ToLocal(&p_length_sym))->Uint32Value();
    Local<String> type = obj->Get(ToLocal(&p_type_sym)).As<String>();
    bool used = obj->Get(ToLocal(&p_used_sym))->IsTrue();
  }
}

indexed properties

// Use indexed properties for values instead.
var obj = { 0: 10, 1: 'string', 2: true };
accessIndexed(obj, iter);
void AccessIndexed(const FunctionCallbackInfo<Value>& args) {
  Isolate* isolate = args.GetIsolate();
  HandleScope scope(isolate);

  Local<Object> obj = args[0].As<Object>();
  size_t iter = args[1]->Uint32Value();

  assert(obj->IsObject());

  for (size_t i = 0; i < iter; i++) {
    size_t length = obj->Get(0)->Uint32Value();
    Local<String> type = obj->Get(1).As<String>();
    bool used = obj->Get(2)->IsTrue();
  }
}

you see what's coming

accessNamed   - 256.78 ns/op

accessIndexed -  71.02 ns/op  2.6x's faster


sharing state

For the few that wonder what's going on in process.nextTick()

attach external memory to an object

// This tickInfo thing is used so that the C++ code in src/node.cc
// can have easy accesss to our nextTick state, and avoid unnecessary
// calls into JS land.
var tickInfo = process._tickInfo;

// Done this way to make each placement much easier to remember.
var kInTick = 0;
var kIndex = 1;
var kLastThrew = 2;
var kLength = 3;

// ... further down ...

function nextTick(callback) {
  nextTickQueue.push({
    callback: callback,
    domain: process.domain || null
  });

  // By manually tracking the queue length we can quickly alert C++
  // whether there are callbacks to be processed or not.
  tickInfo[kLength]++;
}
// We can access each flag without touching the v8 API.
if (tick_info->in_tick() == 1) {
  return ret;
}

if (tick_info->length() == 0) {
  tick_info->set_index(0);
  return ret;
}

// Now that all flags have been checked, we can be confident there's
// no need to call into JS unnecessarily.
tick_callback_function->Call(process_object, 0, NULL);

but does it save us anything

Running the following in a custom build, counting the number of calls from MakeCallback without then with the optimizations:

./node benchmark/net/net-c2s.js len=10240 type=buf dur=5


Without the optimization: ~106,000 calls/sec

With the optimization: ~14,000 calls/sec

That's pushing 100k calls into JS we've bypassed with this little trick.

final thoughts

Core has a reason for the insanity.

We want Node to stay out of your way.

If you want to dive into core, please feel free to ask me.

information

slides and examples: github.com/trevnorris/talks/

freenode: trevnorris

twitter: @trevnorris

you get the idea
